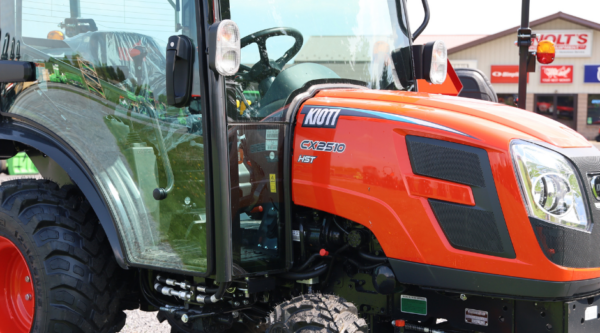

Main Features
- Engine Gross Power: 24.5 hp (18.3 kW)
- PTO Type: Live
- Transmission Type: Hydrostatic
- Tilt Wheel with Power Steering
- Illuminated Dashboard
- Comfortable Seat with Suspension
- Single Lever Joystick
- Cruise Control
- USB and Power Socket
- Dual HST Pedals
- Hydrostatic Transmission
- Factory-Installed Cab with Heating and A/C
- Mid PTO and Rear PTO with adjustable three-point hitch
- Single Remote Hydraulic Valve
Features
- Tilt Wheel with Power Steering: Hydrostatic power steering minimizes the effort required to make tight, repetitive turns. The standard tilt steering wheel ensures all operators have a comfortable driving experience.
- Illuminated Dashboard: The dashboard illuminates when the engine is started ensuring great visibility while working in bright daylight or at night.
- Comfortable Seat with Suspension: With a high quality adjustable suspension seat the operator enjoys a comfortable and smooth ride. A seat belt is included for safety.
- Single Lever Joystick: The operation of the front loader is made easier by the use of a single lever joystick. The lever automatically returns to neutral and the loader stops when the joystick is released. A float position allows the bucket free floatation over the ground surface.
- Cruise Control: The convenient and easy to use cruise control enables the operator to match speed to field conditions and reduce fatigue.
- USB and Power Socket: Power and USB sockets come standard to meet a variety of electrical needs.
- Dual HST Pedals: CX2510 HST Cab models utilize a two pedal system for forward and reverse with smooth engagement, acceleration and deceleration. Dual pedals provide easier use which reduces operator fatigue during long hours of work and when doing repetitive tasks.
- Hydrostatic Transmission: The CX2510 HST Cab utilizes a performance proven, heavy-duty HST that delivers power smoothly and efficiently. With the HST drive your hands remain free for steering and implement control.
- Factory-Installed Cab with Heating and A/C: The deluxe factory-installed full size cab with air conditioning and heat allows operators to perform tasks comfortably throughout the year.
- Mid/Rear PTO with Adjustable Three-Point Hitch: With an adjustable right side lift rod and top link, operators can easily and quickly adjust implements for optimized performance while adding the convenience of both mid and rear PTO standard for this model.

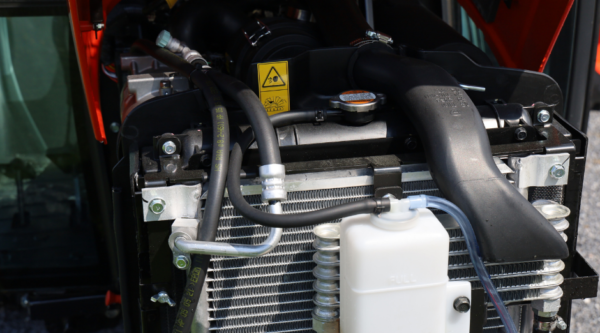

Engine
- Engine Model: 3A165LWH-U3
- Engine Gross Power: 24.5 hp (18.2 kW)
- Rated Speed: 2,600 rpm
- No. of Cylinders: 3
- Fuel Type: Diesel
- Aspiration: Natural
- Displacement: 87 cu. in. (1,647 cc)
- Fuel Tank Capacity: 6.6 gal. (25L)
Transmission
- Transmission Type: Hydrostatic
- Main Gear: Hydrostatic
- No. Travel Speeds: Infinite/2R
- Min. Travel Speed: 0 mph (0 km/h)
- Max. Travel Speed: 10.7 mph (21.74 km.h)
Power Take-Off (PTO)
- PTO Type Transmission: Live
- PTO Power: 18.8 hp (14 kW)
- Rear PTO Speeds: 540 rpm
- Mid PTO Speeds: 2,000 rpm
Brakes and Clutch
- Brake: Wet Disc Type
- Clutch: Dry Single
- Weight w/ Ag Tires w/ROPS: 2,804 lb. (1,272 kg)
Dimensions w/ Ag Tire
- Length w/ 3-point: 111 in. (2,820 mm)
- Width: 49.4 in. (1,256 mm)
- Height from Top of ROPS: 86.6 in. (2,200 mm)
- Wheelbase: 59.8 in. (1,520 mm)
- Ground Clearance: 13.4 in. (340 mm)
- Front Tread Ag Tires – Min: 38.1 in. (968 mm)
- Rear Tread Ag Tires – Min: 37.4 in. (951 mm)
- Min. Turning Radius w/Brake: 9.0 ft. (2.75 m)
Hydraulics
- Total Pump Flow: 11.3 gpm (42.9 L/min)
3-Point Hitch
- Standard Category: Category 1
- Lift Capacity, 24″ aft of hitch: 1,203 lbs (546 kg)
- Control Type: Position
Standard Equipment
- Hydrostatic Power Steering
- Rear PTO
- Mid PTO
- Headlights
- Safety Lights
- Cup Holder
- Illuminated Dashboard
- Wet Multi Disc Brakes
- Joystick Valve
- Adjustable Seat
- Parking Brake
- Cruise Control
- Toolbox
- Rear Working Light
- Single Remote Hydraulic Valve
Optional Equipment
- Front Weight
- 7 Pin Socket
- 3rd Function Kit
- Clevis Type Drawbar
- Telescopic 3-Point Lift Arms
- Engine Block Heater
- Beacon Lamp Wire Kit
- Dual Air Filter
Instrument Panel
- Digital Hour Meter
- Coolant Temperature Gauge
- Electrical Tachometer
- Fuel Gauge
- Engine Oil Pressure Light
- High Beam, Emergency Flasher, Direction Indicators
- Glow Plug Light
- Alternator Light
Available Tires
- Agriculture: Front 7-12; Rear 11.2-16
- Turf: Front 23X8.5-12; Rear 33X12.5-16.5
- Industrial: Front 23X8.5-12; Rear 12-16.5
- R14: Front 23X8.5-12; Rear 12-16.5
Attachments
- Front End Loaders : KL2510: Fits the CX2510, CX2510 HST and CX2510 HST Cab. The KIOTI KL2510 front end loader is specifically designed for the CX2510 tractors, providing efficient performance with single lever joystick control. The KIOTI loader, with a built-in parking stand, is designed to be quickly and easily attached and detached. KL Series loaders utilize the tractor’s hydraulic system, feature single-lever control with float and come with a bucket level indicator. *Specifications may vary with tractor model, front axle configurations, tire size option and type of attachment and are subject to change without notification.
- Backhoes : KB2465: Fits the CX2510, CX2510 HST and CX2510 HST Cab. Specifications may vary depending on tractor model and are subject to change without notification. Tractors must be equipped with ROPS and seat belt that will provide greater safety.
