Engine
- Engine Model: 3C100LWH-U2
- Engine Gross Power: 24.5 hp (18.3 kW)
- Rated Speed: 3,200 rpm
- No. of Cylinders: 3
- Fuel Type: Diesel
- Displacement: 61.5 cu in. (1,007 cc)
- Fuel Tank Capacity: 6.7 gal. (25.5 L)
Transmission
- Transmission Type: Hydrostatic
- Main Gear: Hydrostatic
- No. of Travel Speeds – Forward / Reverse: Infinite, 2 Range
- Min. Travel Speed of Forward w/ Ag @ Engine rated speed: 0 mph (0 km/h)
- Max. Travel Speed of Forward w/ Ag @ Engine rated speed: 9.57 mph (15.4 km/h)
Power Take-Off
- PTO Type: Independent
- PTO Power: 18.5 hp (13.9 kW)
- Rear PTO Speeds(1st): 540 rpm
- Mid PTO Speeds: 2,200 rpm
Brakes and Clutch
- Brakes: Wet Multi Disc
Dimensions w/ AG Tire
- Length w/ 3-point hitch: 99.3 in. (2,523 mm)
- Width: 45.9 in. (1,168 mm)
- Height From Top of the Highest Point: 88 in. (2,226 mm)
- Wheelbase: 55.1 in. (1,400 mm)
- Ground Clearance: 6.4 in. (162 mm)
- Front Tread Ag Tires – Min: 44.6 in. (1,133 mm)
- Rear Tread Ag Tires – Min: 46 in. (1,168 mm)
- Turning Radius w/ Brake: 8.2 ft. (2.54 m)
Hydraulics
- Total Pump Flow: 6.97 gpm (26.4 L/min)

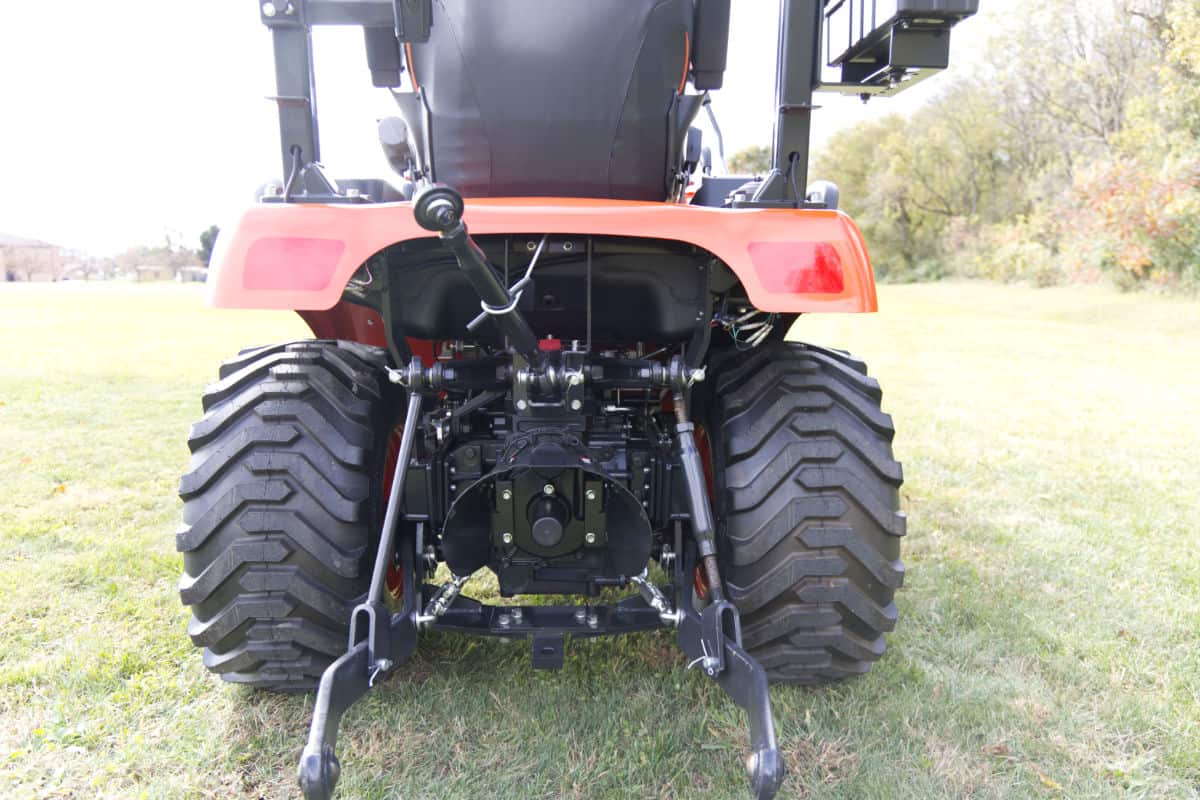

3-Point Hitch
- Standard Category: Category 1
- Maximum Lifting Capacity (24″”aft. of hitch): 700 lb. (318 kg)
- Control Type: Position
Weight
- Weight w/ Ag Tires w/ ROPS: 1,554 lb. (705 kg)
Standard Equipment
- Rear PTO
- Mid PTO

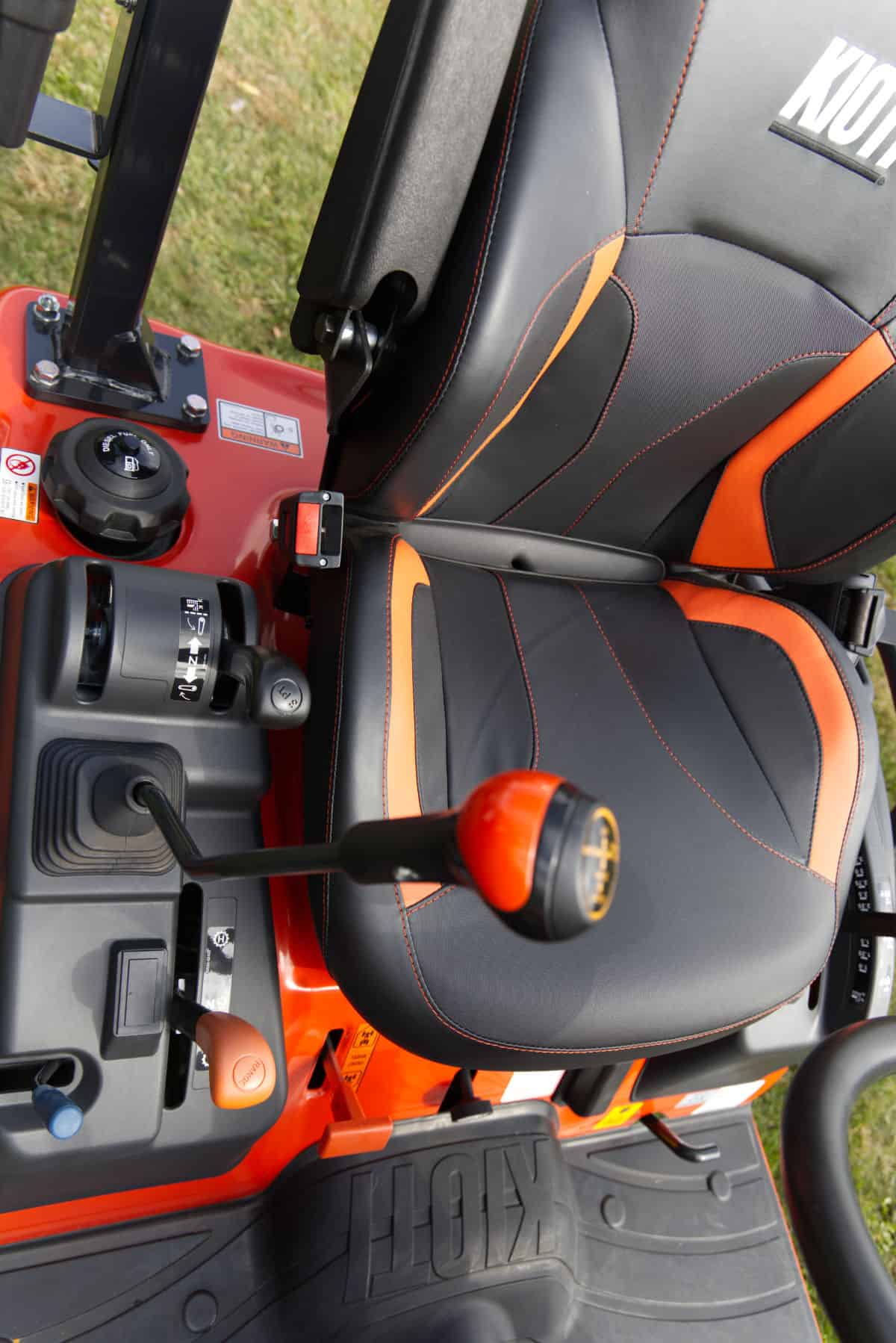

- Joystick Valve
- Grill Guard
- Power Steering

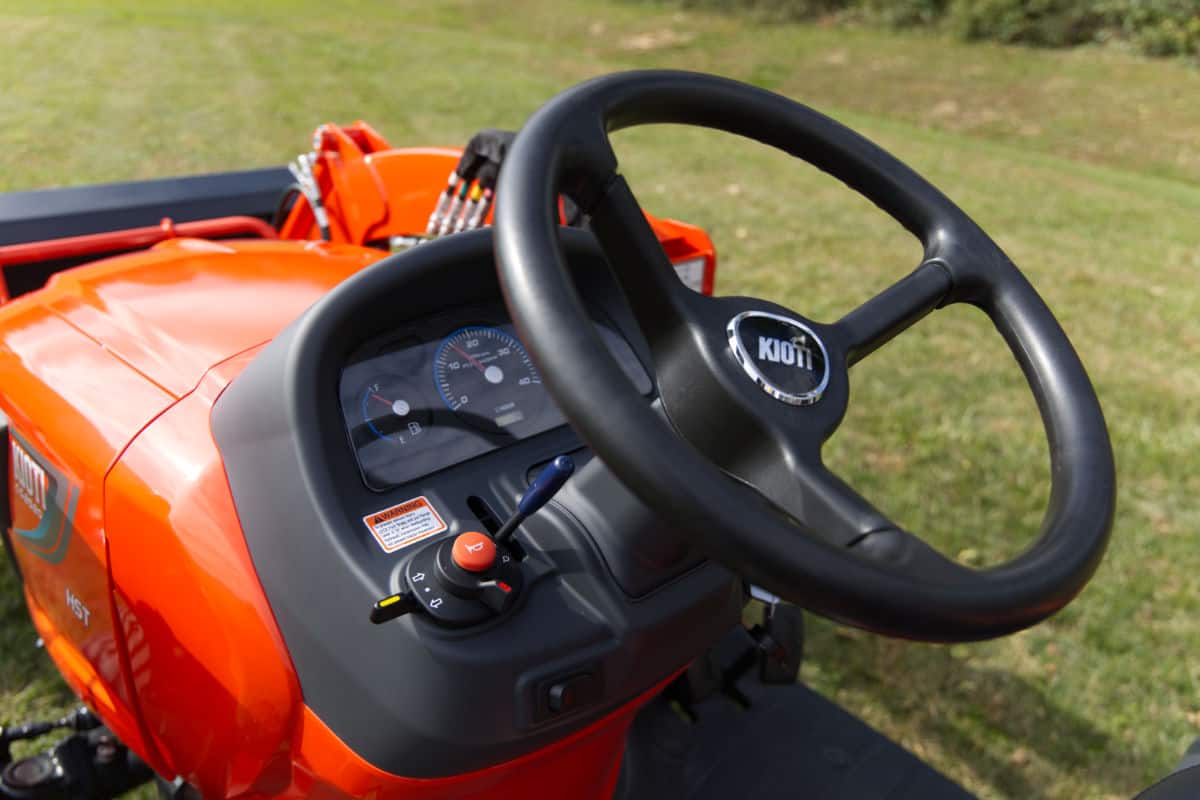

- Tilt Steering Wheel
- Parking Brake
- PTO Shield
- Cruise Control
- USB Socket
- Power Socket
- Headlights
- Warning/Signal Lights
- Cup Holder
- Horn
- SMV Sign
Optional Equipment
- Rear Hydraulic Valve
- Rear Working Lights
- Front Weight (60 lbs)
- Side View Mirror
- Canopy Kit
- Front Towing Hook
- Hydraulic Filter Guard
- Rear Wheel Weight
Instrument Panel
- Tachometer
- Fuel Gauge
- Temperature Gauge
- Low Fuel Warning Lamp
